Electrical Spec. |
Options |
||
|
Rating voltage |
380VAC |

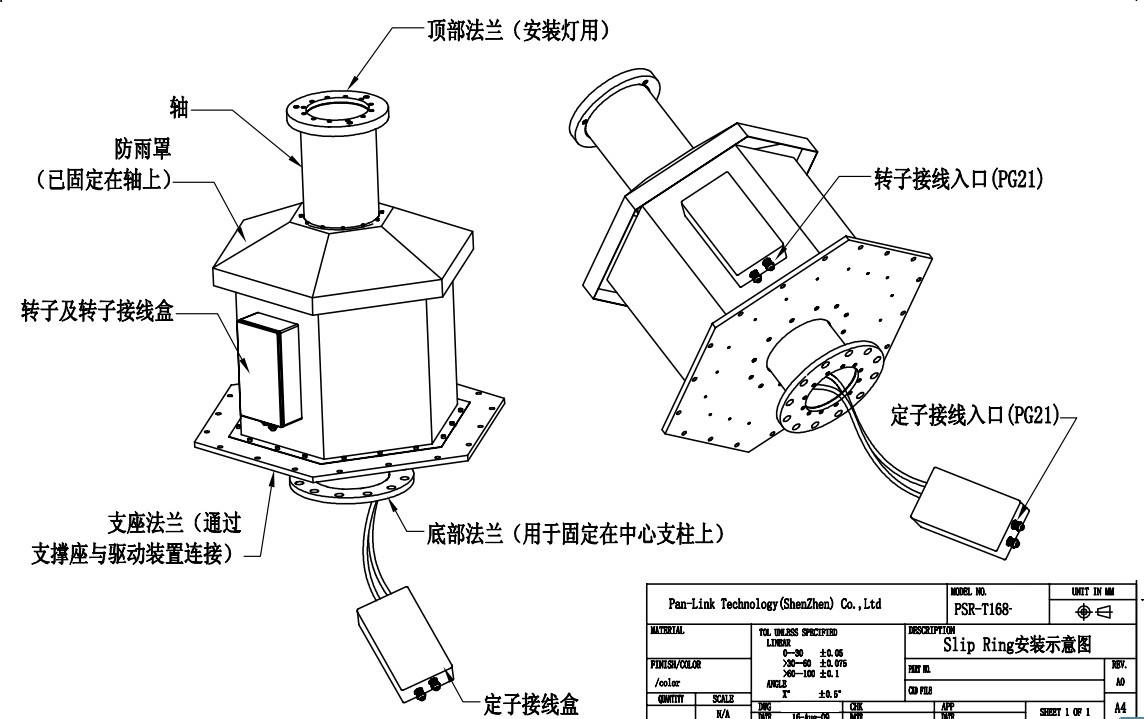

Flange for set up |
|
|
Rating current |
150A /Ring，500A /Ring，1000A /Ring |
The wire exit direction,length is optional |
|
|
Insulation resistance |
1000MΩ@500VDC |
Can combine more circuits:1-126Ring |
|
|
Dielectric strength |
600VDC@50Hz |
Higher voltage and current capacity |
|
|
Electrical noise |
10mΩ@6VDC,50mA, 5Rpm |
Higher rotational seed:800Rpm |
|
|
Mechanical Spec |
Environment |
||
|
Speed |
300Rpm |
Working temperature |
-40℃~+80℃ |
|
Torque |
60N.cm |
Mechanical vibration |
MIL-SID-810E |
|
Seal class |
IP54 (IP68Options) |
Humidity |
10% to 90% RH non-condensing |
|
Contact material |
Precious Metal |
Materials |
Lead Free,RoHS compliant |
|
Lead Wire |
Teflon wire |
CE Certified |
YES |
|
Life |
500million revolutions |
|
|
|
|
|
¤ 運用領域

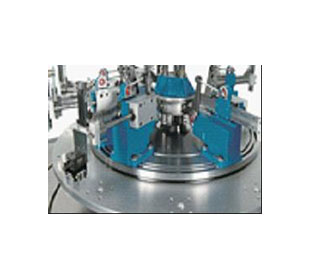

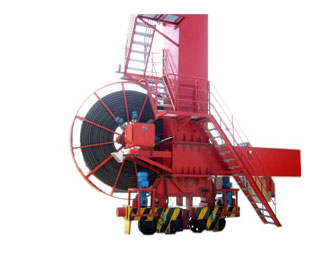

1.工業(yè)機器： 加工中心、繞線機、端面加工機、焊接設備 2. 旋轉工作臺： 電池機械、灌裝機、吹瓶機、旋轉印刷機 3.電纜卷筒： 港口機械、重型吊臂、工程機械、塔臺 4.試驗設備： 離心測試臺、分離機 5.機器人： 包裝設備、堆垛機、工藝控制設備、緊急照明設備 6.展覽/顯示設備： 汽車展臺、旋轉門、產(chǎn)品展臺、旋轉餐廳
|
