盤式滑環

產品類型：Pancake Slip Rings 產品型號：PSR-P31-4
  For space adn cost conscious requirements,platter sepa-rate slip ring can be an ideal solution.The unit suppplied generally consists of a slip ring based on a PCB style adn matching brush block or board depending on the require-ments.The PSR-P31-4 features a 31mm through bore for shaft mounting and contacts by connector instead of lead wire.It can be mounted in 6.4mm height space. ...
  • 性能
  • 尺寸圖
  • 特征
  • 安裝方法

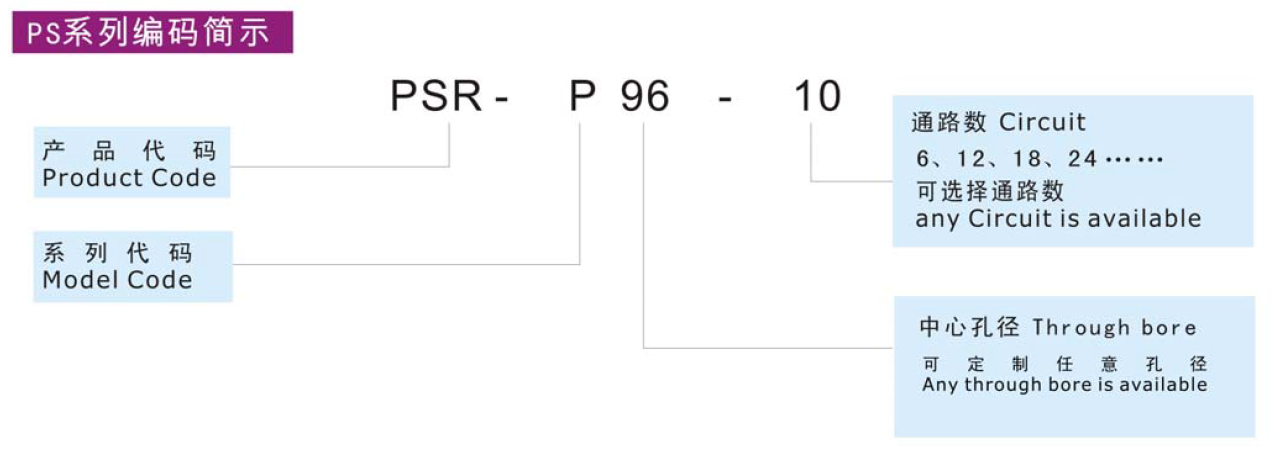

  • 訂貨號
  • 下載

Electrical

　

Mechanical

Circuits

4 circuits

Through bore

31mm

Current

2A

Speed

30rpm

Voltage

240VAC

Torque

0.8N.m

Insulation resistance

500MΩ@500VDC

Environment

Electrical noise

40mΩ max

Working temp.

-40℃~+80℃

Dielectric strength

600VDC@50Hz

Storage temp.

-45℃~+85℃

Precious contact metarial

Hunidity

60%

Seal class

Ip54


?31mm through bore for shaft mounting
?Separate components
?Simple installation
?Connector contacts
?Low electrical noise,low drive torque,low wearadn low cost

……
